To Combat Air Pollution ANTI SMOG GUN

An anti smog gun is a device designed to combat air pollution by reducing smog and improving air quality.
This document explores the mechanics of an anti smog gun, its benefits, applications, limitations, and challenges. Discover how this innovative solution helps in the fight against air pollution

Contact Us

How Does it Work?

The main purpose of an anti smog gun is to mitigate the harmful effects of air pollution. By spraying a fine mist of water particles, it helps to suppress dust, particulate matter, and other pollutants present in the air. This leads to a significant reduction in smog levels, improving the overall air quality and promoting a healthier living environment.

Mechanics of an Anti Smog Gun

The anti smog gun consists of a high-pressure water pump and a set of specially designed nozzles. The pump pressurizes water and propels it through the nozzles, creating a fine mist that is sprayed into the air.

Operation Process

The anti smog gun is usually mounted on a vehicle or a fixed structure. It can be operated manually or through an automated system. The nozzle angles and spray pattern can be adjusted to cater to specific requirements and target areas with high pollution levels.

Contact Me

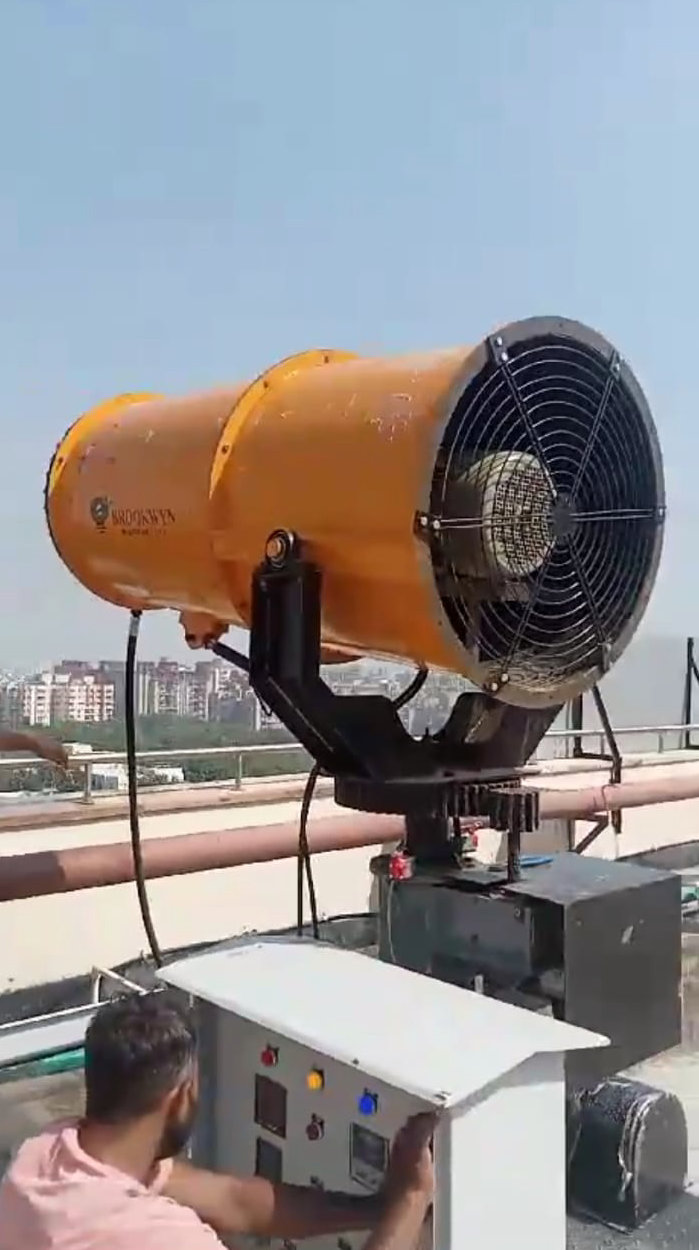

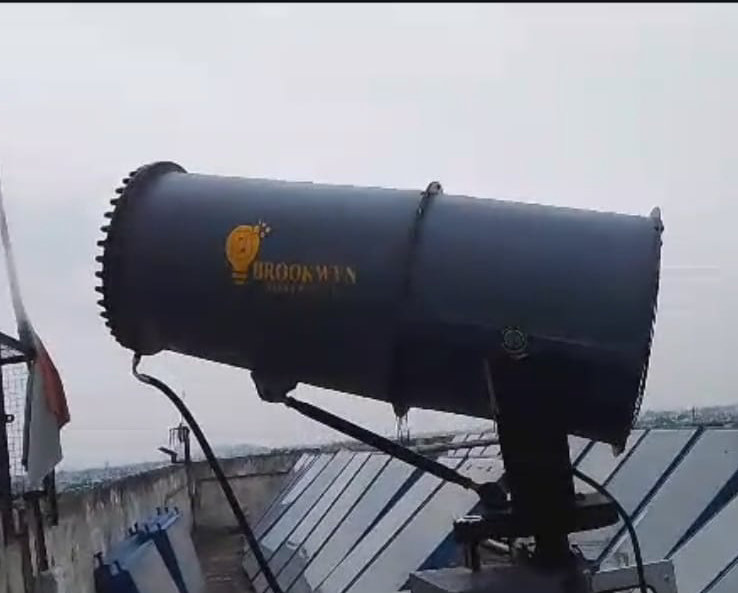

Configuration of Our Anti Smog Gun

Anti Smog gun with 25_30mtr range​ (Model: BWAS-121375

1 Usage / Application Control of Air Pollution
2 Theoretical Spraying Distance 75 – 100 Meters
3 Type Drum / Skid Mounted
4 Cannon Casing Mild Steel, Powder Coated, Fan Diameter: 28 Inch
5 Droplet Size 50 – 150 Microns
6 Tilting Angle 10° – 50°
7 Main Fan Motor 25 HP Crompton Motor, 3 Phase
8 Voltage 415 V / 50 Hz / 6.3 Amp
9 Blower Fan Aluminum Casting, 2400 – 2800 RPM
10 Fan Blades 6 Nos.
11 Nozzles 20 Nos. (SS-304 with filter mesh)
12 Cannon Rotation Mechanism Gearbox assembly with 5 HP Motor, 1440 RPM (Crompton / Lubi)
13 Blower RPM 2820 RPM
14 Hose High Pressure Rubber Hose Pipe
15 Control Panel Operates Fan & Pump
16 Water Pump Pressure 1.5 – 3 Amp
17 Water Pump 3 HP CRI / Lubi, 415 V / 50 Hz / 1440 RPM / 6.3 Amp
18 Cannon Tilting 0° – 50°
19 Timer 1 No. – Auto Start & Auto Stop Function
20 Water Pump Motor Type High Pressure Piston Type, 3 HP / 415 V / 50 Hz / 1440 RPM (Lubi / CRI Make)
21 Nozzle Material Stainless Steel (SS-304) with Filter Mesh
22 Protection Level IP-65
23 Material of Construction Mild Steel (MS)
24 Mist Spray Nozzles 18–20 Nos. (SS)

Anti Smog gun with 40-50mtr range (Model: BWAS-121375

– Make/Brand-Brookwyn Wibre
– Main Motor – 10hp (Havels/crompton), 3 phase
– Fan Blade- 6nos.
-Fan Size – 28inch
– type – semi auto
– operated – manual
-Water pump 3hp (CRI )
-Nosel 22_24pc (Brass)
– Water tank – 1000ltr (MS)
-Water Consumption- 12 Ltr/per Minut (per Hour 720ltr approx)
-Type – Trolly mounted
-Rotation- 330°
-Control pannel with overload relay system
-Wheel- 4nos.(new)

Anti Smog gun with 25-30mtr range (Model: BWAS-121375

– Make/Brand- Brookwyn Wibre
– Main Motor – 5hp, 3 phase(copper)
(Any branded- crompton/ havels, kirloskar etc)
– Fan Blade- 6nos.
-Fan Size – 24inch
-Water pump 2hp (CRI / Luby)
-Nosel 18pc (Brass)
– Water tank – 1000ltr (MS) (Round /square)
-Water Consumption- 12 Ltr/per Minut (per Hour 720ltr approx)
-Type – Trolly mounted
-Rotation- 330°
-Control pannel with overload relay system
-Wheel- 4nos.(new)

Benefits of Using an Anti Smog Gun

The main purpose of an anti smog gun is to mitigate the harmful effects of air pollution. By spraying a fine mist of water particles, it helps to suppress dust, particulate matter, and other pollutants present in the air. This leads to a significant reduction in smog levels, improving the overall air quality and promoting a healthier living environment.

Reduction of Smog Pollution

The primary benefit of
using an anti smog gun is
the significant reduction in
smog pollution. By
suppressing pollutants in
the air, it helps to break
down smog particles,
leading to clearer skies
and improved visibility.

Improved Air Quality

The anti smog gun's ability to mitigate pollution results in improved air quality. Cleaner air means a healthier environment for residents, reduced respiratory issues, and a lower risk of various health conditions associated with air pollution.

Health Benefits

Using an anti smog gun has numerous health benefits. By reducing pollutants in the air, it helps to lower the risk of
respiratory diseases, allergies, and other health issues caused by poor air quality. It promotes a better quality of life for individuals living in densely populated areas.

Application of Anti Smog Gun

The main purpose of an anti smog gun is to mitigate the harmful effects of air pollution. By spraying a fine mist of water particles, it helps to suppress dust, particulate matter, and other pollutants present in the air.
This leads to a significant reduction in smog levels, improving the overall air quality and promoting a healthier living environment.

Urban Areas

Urban areas with heavy traffic and congestion are prone to higher pollution levels. Anti smog guns can be deployed in strategic locations such as traffic intersections, public parks, and busy streets to help reduce pollution and improve air quality for urban dwellers.

Industrial Use

Anti smog guns are commonly utilized in industrial areas such as factories, construction sites, and mining operations. These environments often produce a high level of dust and pollutants, making anti smog guns an effective tool for controlling air pollution.

Events and Public Gatherings

Temporary events and public gatherings, such as outdoor concerts or festivals, can contribute to increased pollution levels. By using anti smog guns at these events, organizers can proactively address air pollution concerns and create a safer and healthier environment for attendees.

Limitations and Challenges

Cost and Maintenance

Implementing and maintaining anti smog guns can involve significant costs.
The initial investment, regular maintenance, and operational expenses need to be taken into account when considering the viability of using these devices. Effectiveness in
Different Weather Conditions

Effectiveness in Different Weather Conditions

Anti smog guns are designed to work efficiently in specific weather conditions. Factors such as wind speed and ambient temperature can impact their effectiveness. It
is essential to consider these variables while planning their deployment.

Regulatory
Considerations

The use of anti smog guns may have regulatory requirements and restrictions imposed by local authorities. Before implementing these
devices, it is necessary to understand and comply with the relevant regulations to ensure adherence to environmental standards.
